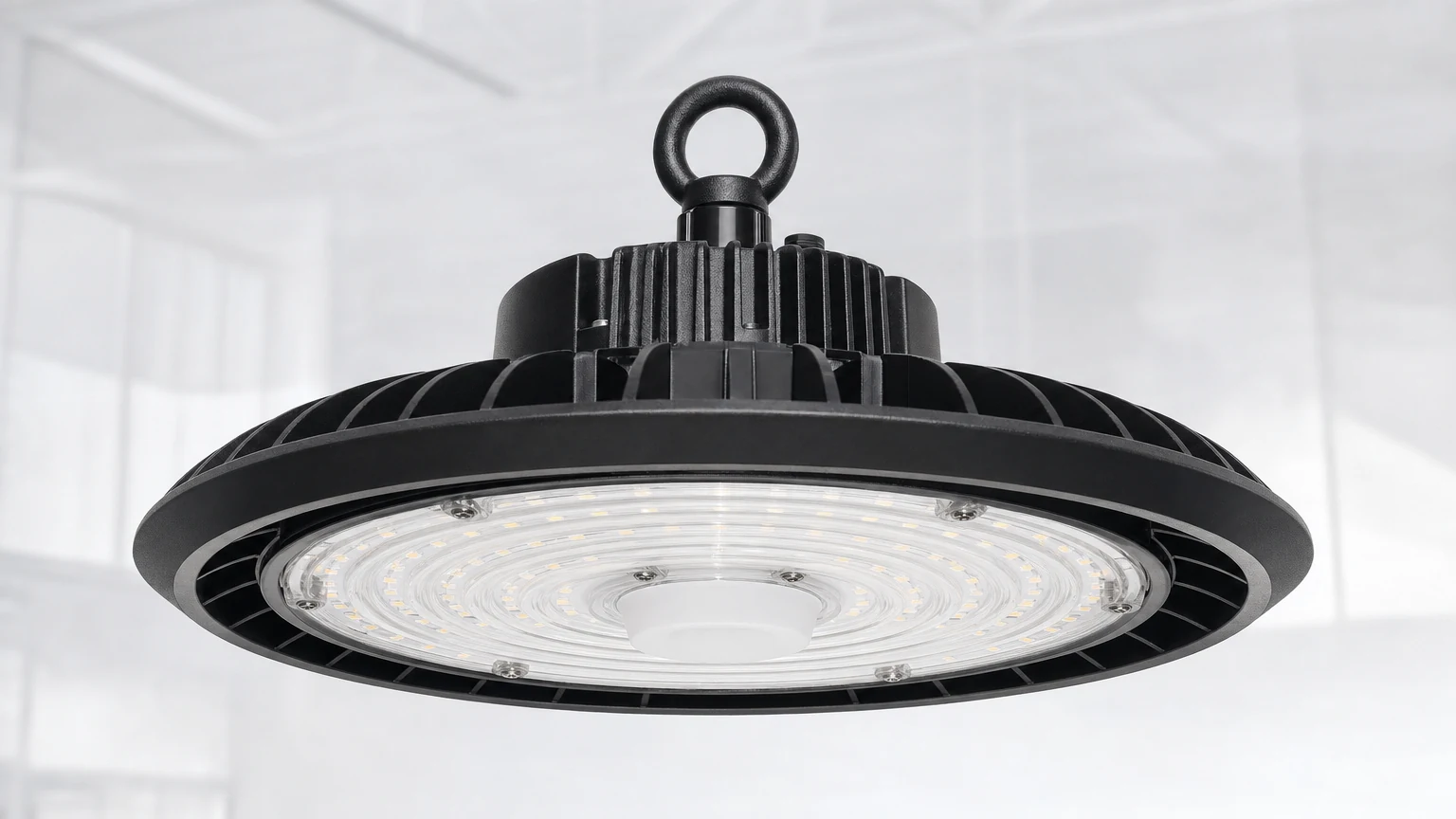

Product Overview
Anti Glare High Bay Light for high bay lighting: 80-240W, 150lm/w, AC100-277V. B2B selection and project support from Yaoqian.
Technical Parameters
| Power | 80-240W |
|---|---|
| LED chip | Project-specific |
| Efficacy | 150lm/w |
| CRI | 80 |
| Input voltage | AC100-277V |
| CCT | 3000-6500K |
| Operating temperature | -50 deg C-+55 deg C |
| Beam angle | 60°/90° |
| Category | LED |
Engineering Selection Points
Application Fit
For factories, warehouses, high-rack aisles, assembly areas and service zones. Strong product pages should connect wattage with mounting height, task illuminance, fixture spacing, beam angle, glare and maintenance.
- For 6-12 m spaces, compare medium or wide beams, spacing and floor uniformity.
- For higher spaces or rack aisles, check narrower optics, vertical visibility and high-level service access.
- Retrofits should record legacy wattage, quantity, operating hours and post-retrofit lux at matching points.
Delivery and Acceptance Documents
- Illuminance records
- Mounting height and layout
- Product datasheet and photometry
- Driver and control interface
- Before/after power comparison
Selection Advice
Confirm site photos, area, mounting height, target illuminance, environment temperature, protection or explosion-proof requirements, existing fixture quantity and control method before final selection.
- mounting height and target illuminance
- narrow or wide beam selection
- glare control and thermal design
- sensor dimming and maintenance access
Applications
- Industrial factories, warehouses, logistics centers and engineering projects.
- New-build lighting, energy retrofit, illuminance improvement and maintenance cost optimization.
- B2B projects that require consistent product parameters, delivery coordination and technical support.
