Product Overview

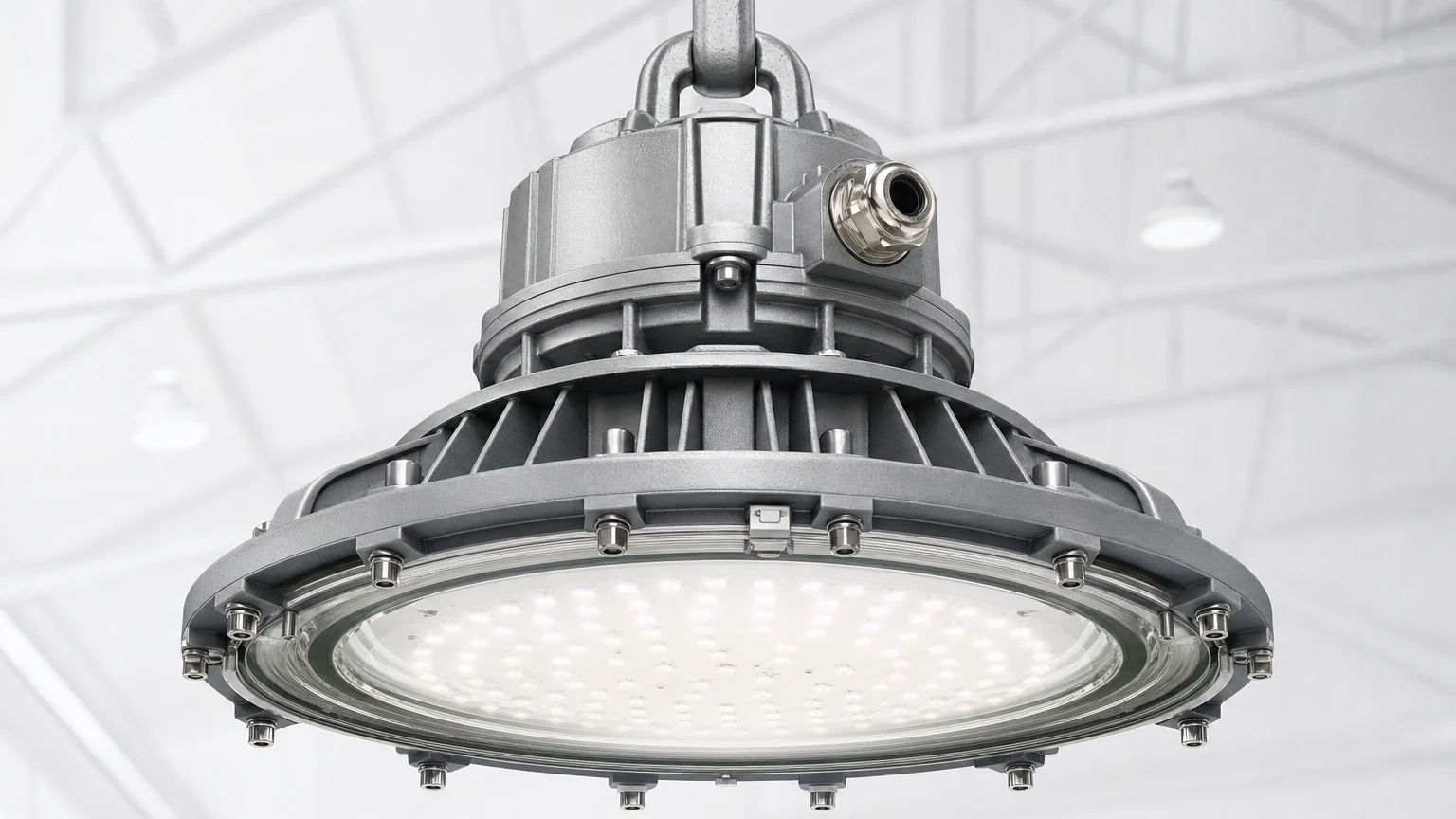

Explosion Proof High Bay Light for explosion-proof lighting: 80-240W, 140lm/w, AC100-277V. B2B selection and project support from Yaoqian.
Technical Parameters
| Power | 80-240W |
|---|---|
| LED chip | Project-specific |
| Efficacy | 140lm/w |
| CRI | 80 |
| Input voltage | AC100-277V |
| CCT | 3000-6500K |
| Operating temperature | -50 deg C-+55 deg C |
| Beam angle | 60°/90°/120° |
| Category | LED |
Engineering Selection Points
Application Fit
For chemical, hazardous storage, coating, dust and flammable-risk zones. Content must focus on hazardous classification, gas or dust type, temperature class, protection construction, cable entry and installation conditions.
- The project owner should confirm hazardous-area classification first.
- Check markings, temperature class, mounting, cable sealing and corrosion conditions.
- Explosion-proof floodlights also require illuminance, glare, bracket angle and service clearance checks.
Delivery and Acceptance Documents
- Explosion-proof marking documents
- Installation and wiring record
- Hazardous-area data
- Target illuminance record
- Maintenance checklist
Selection Advice
Confirm site photos, area, mounting height, target illuminance, environment temperature, protection or explosion-proof requirements, existing fixture quantity and control method before final selection.
- hazardous-area classification and explosion-proof rating
- temperature class and gas or dust environment
- cable entry, mounting and grounding
- protection, corrosion resistance and servicing
Applications
- Industrial factories, warehouses, logistics centers and engineering projects.
- New-build lighting, energy retrofit, illuminance improvement and maintenance cost optimization.
- B2B projects that require consistent product parameters, delivery coordination and technical support.
