Product Overview

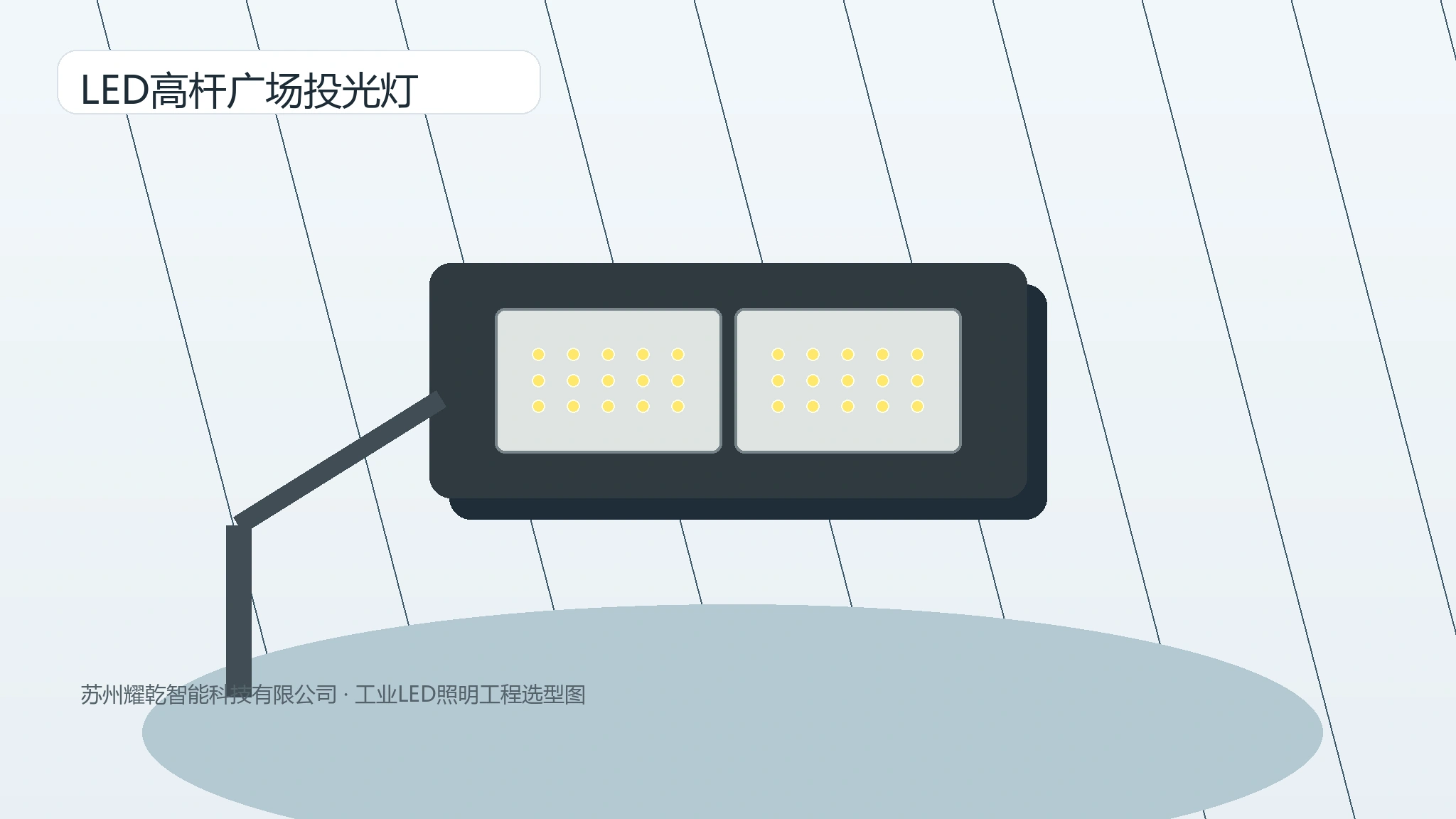

High Mast Plaza Floodlight for outdoor facade & floodlighting: 200-1000W, 140lm/w, AC100-277V. B2B selection and project support from Yaoqian.
Technical Parameters
| Power | 200-1000W |
|---|---|
| LED chip | Project-specific |
| Efficacy | 140lm/w |
| CRI | 80 |
| Input voltage | AC100-277V |
| CCT | 3000-6500K |
| Operating temperature | -40 deg C-+55 deg C |
| Beam angle | 15°/30°/60° |
| Category | LED、 |
Engineering Selection Points
Application Fit
For yards, loading zones, port platforms, facades, equipment areas and outdoor work areas. Floodlight content should cover throw distance, beam angle, aiming, glare, surge, corrosion, ingress protection and bracket loading.
- Long throw depends on optics and intensity, not wattage alone.
- Outdoor projects need IP, surge, corrosion, bracket and wind-load checks.
- Spill light and glare can affect roads, workers and CCTV recognition.
Delivery and Acceptance Documents
- Pole and aiming record
- Surge protection data
- Bracket and foundation check
- Lux coverage test
- Outdoor maintenance plan
Selection Advice
Confirm site photos, area, mounting height, target illuminance, environment temperature, protection or explosion-proof requirements, existing fixture quantity and control method before final selection.
- throw distance and coverage area
- beam angle and spill-light control
- waterproofing, surge protection and corrosion resistance
- bracket loading and maintenance access
Applications
- Industrial factories, warehouses, logistics centers and engineering projects.
- New-build lighting, energy retrofit, illuminance improvement and maintenance cost optimization.
- B2B projects that require consistent product parameters, delivery coordination and technical support.
